The console

The console ships inside Tracon.UI as a pre-built, Brotli-compressed single-page application. There is no node_modules in your project and no JavaScript build in your pipeline.

builder.AddTracon()
       .UseOpenAI(apiKey)
       .UseUI();

app.MapTracon("/tracon");

There is no separate mapping call. MapTracon finds the registration and binds the console under the same prefix, so the prefix is written once.

Screenshots

Every image on this page is produced by the end-to-end test run, in a real browser, against a real server. The same run asserts each screen’s landmark element, so a screen that stops rendering fails the build instead of leaving a stale picture here.

How it is laid out

The console is built for an operator who leaves it open, not for a visitor who reads it once. Dark is the default palette, the base text size is 13 px, and a table row is about 32 px tall.

Navigation is split by the job you are doing. Operate holds what the airspace is doing right now — dashboard, playground, runs, sessions, approvals, jobs, evaluations, audit, diagnostics. Configure holds what is allowed to fly — agents, workflows, tools, skills, models, MCP servers, triggers, settings.

There is one accent colour. Everything else that is coloured is a status, and the same status is the same colour on every screen:

Reads as	Means
Accent	In flight now — a run streaming, the row you are on
Green	Cleared — completed, healthy, approved
Amber	Holding — queued, waiting on a person, degraded
Red	Denied — failed, rejected, unhealthy
Blue	Contact — something started or was attached
Grey	Standby — cancelled, idle, structural

Colour is never the only signal: every status also carries its own word, and charts use a separate series palette so a line is never mistaken for a verdict. Both palettes are measured against WCAG AA on every build — text at 5.2:1 or better, borders and graphics at 3.5:1 or better, in both themes.

Every identifier — a run, a session, a tenant, a span, an API key prefix — is monospace at one size, so two of them can be compared by shape. The ones worth moving into a query or a ticket carry a copy control.

Dashboard

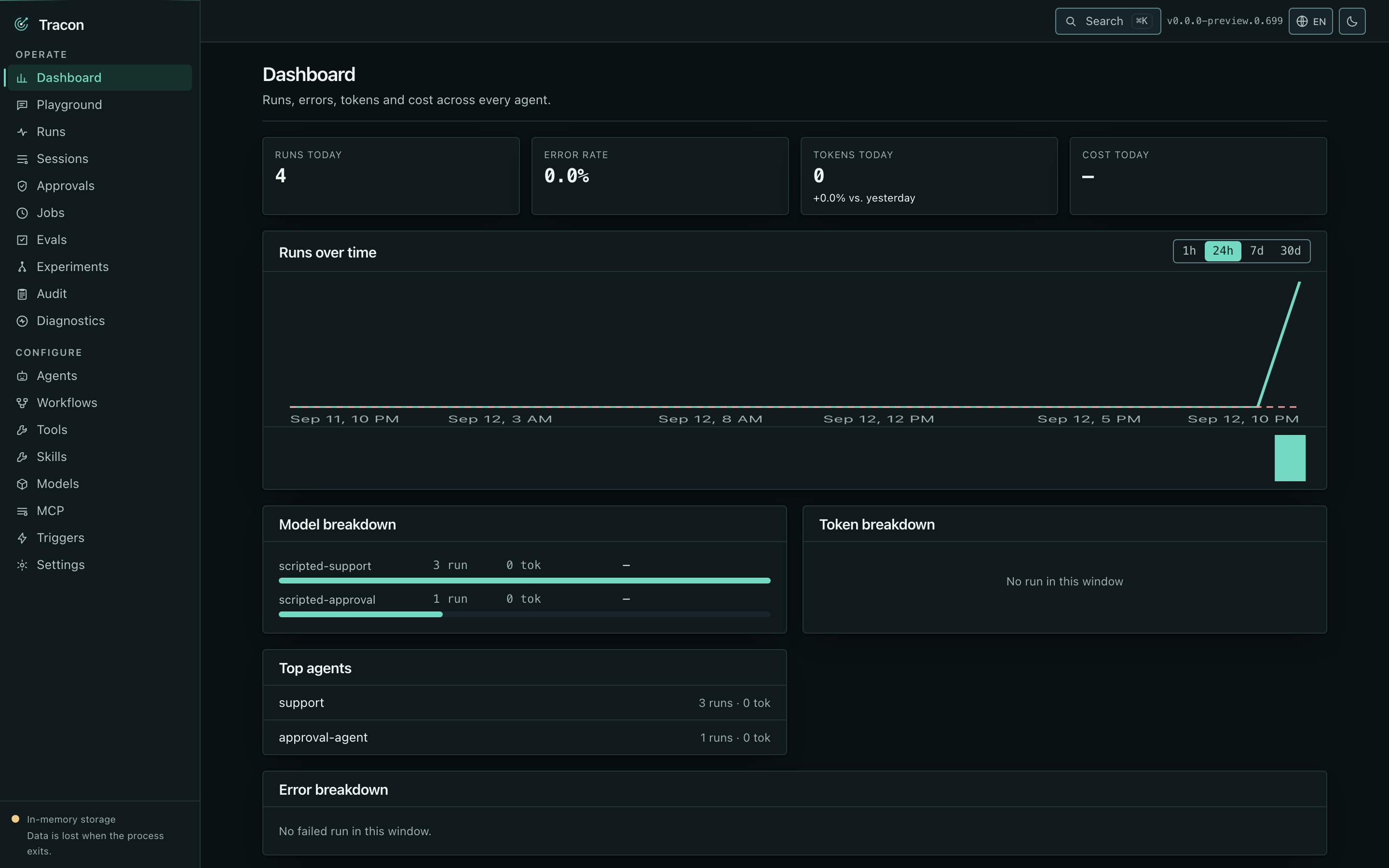

Runs, errors, tokens, and cost across every agent, over a window you choose. Cost appears only when pricing is configured; models with no pricing are counted separately rather than silently written as zero.

A token breakdown bar shows where the tokens actually went: prompt-cache hits, fresh input, reasoning, and plain output. The four slices are disjoint — cache hits and reasoning are re-cut out of the input and output totals rather than added beside them, so the bar is never longer than the tokens that were spent. Each slice is named with its own count underneath, so colour is never the only signal.

The footer always states which storage is active. In the screenshot above it says in-memory — a reminder that this data ends with the process.

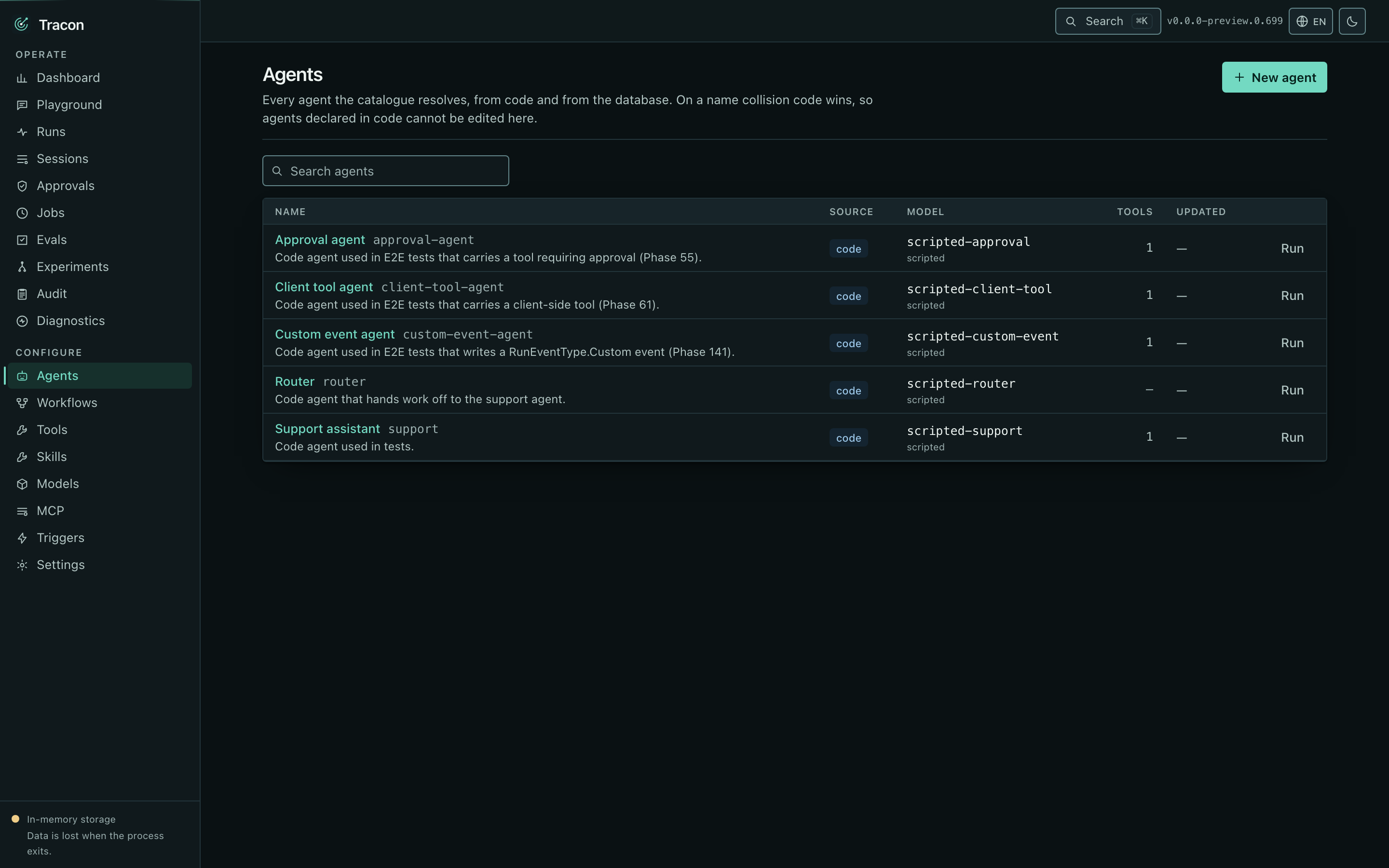

Agents

Code-defined and database-defined agents in one list. The origin is on each entry, because it decides what you can do: a code agent can be run and read but not edited, and the console hides the edit form rather than offering one that would fail.

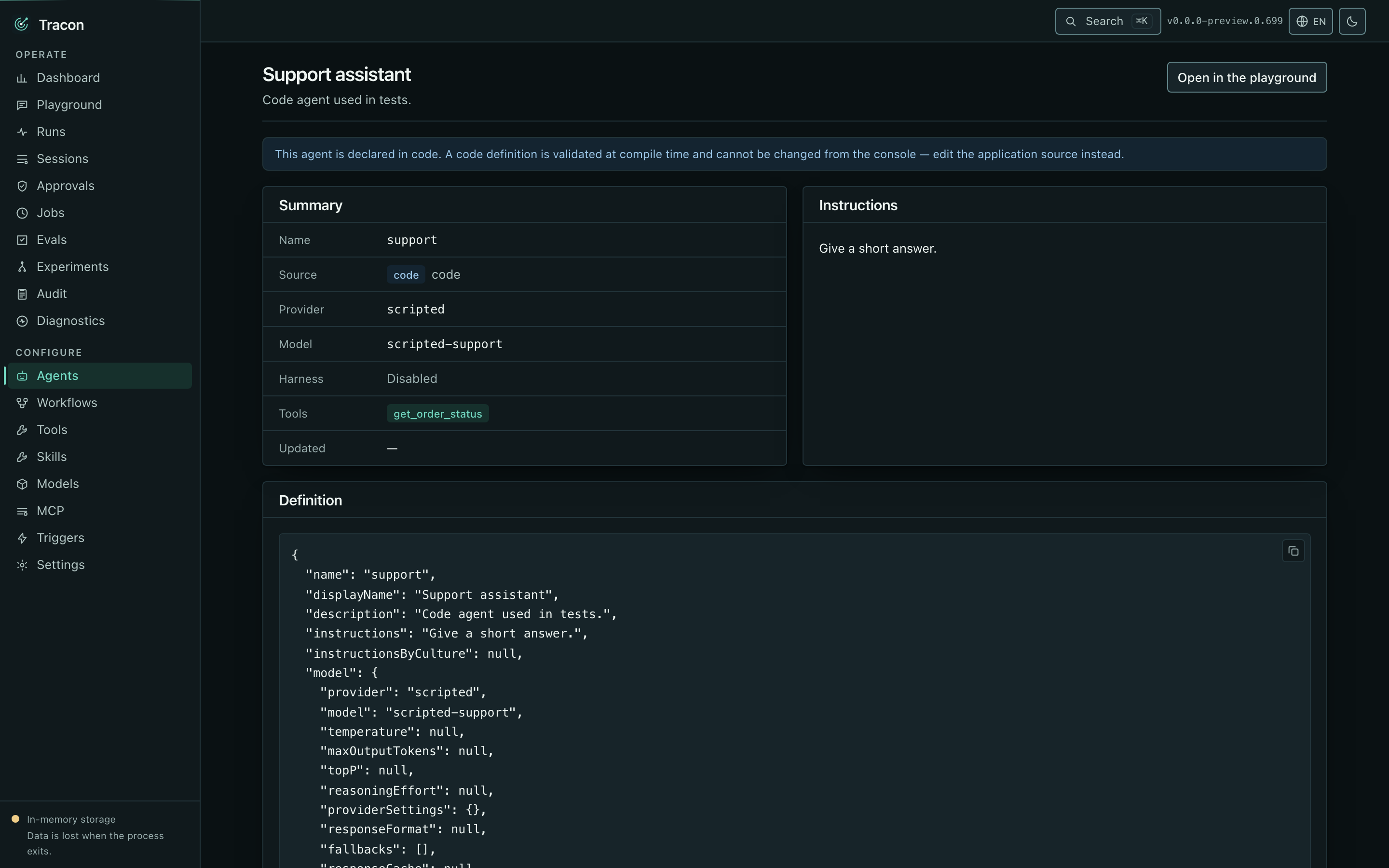

The detail screen carries the model binding, tools, skills, callable agents, and — for a database agent — the version history with a diff between any two versions and a one-click rollback.

The editor validates as you save, using the same rules the compiler applies. An unknown tool or skill name is refused at write time, not on the first run.

The instructions panel also holds a culture-keyed section: add a culture tag (tr, de, …) with its own instructions text, and a run requesting that culture picks it up (see Culture-keyed instructions). The version diff screen shows each culture’s text as its own section.

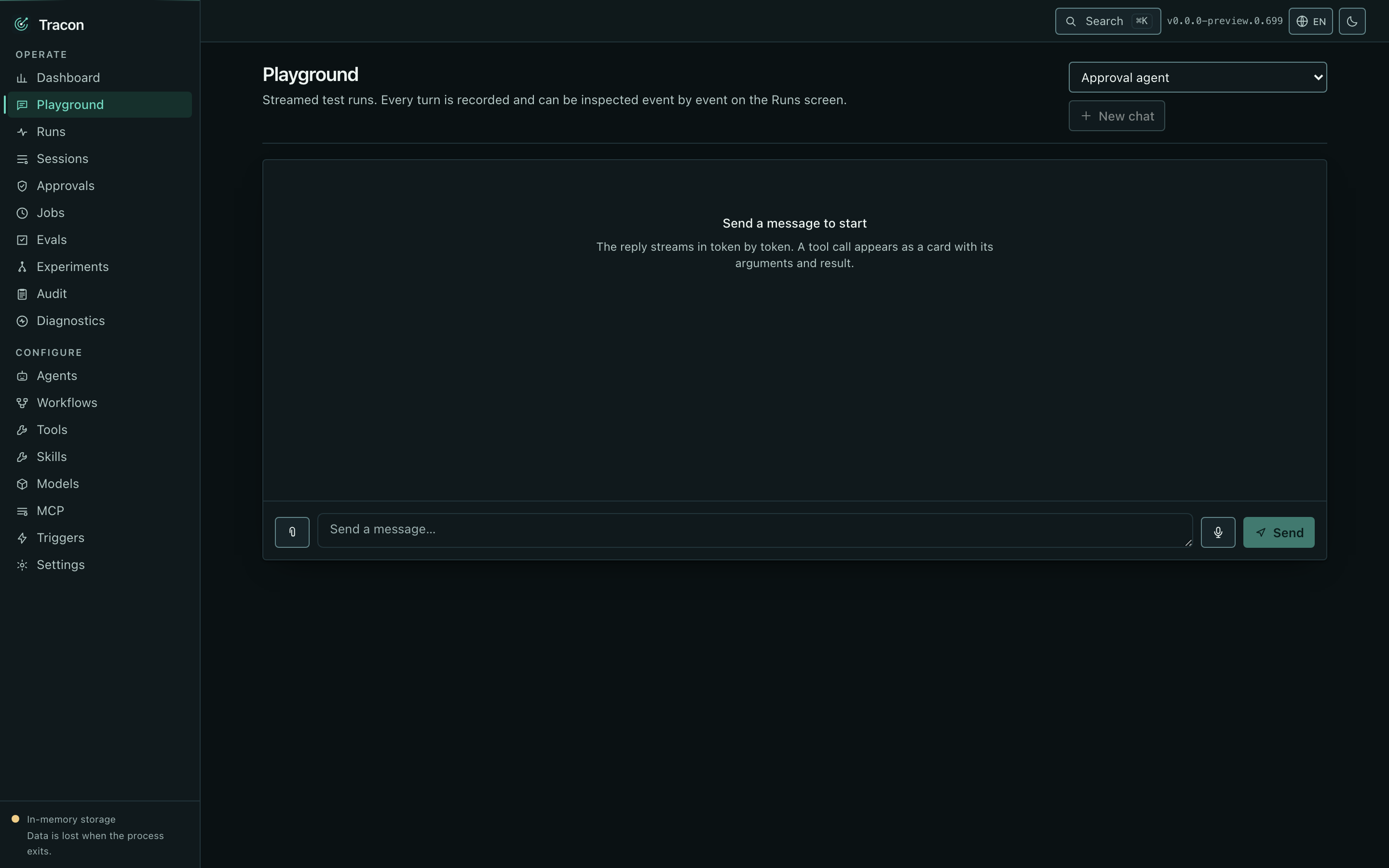

Playground

Talk to an agent. The reply streams token by token and tool calls appear as cards with their arguments and their results, so you can see why an answer came out the way it did rather than just reading the answer.

Attachments can be added to a message, and with the voice layer enabled there is a live conversation mode.

When the selected agent declares a parameter schema, the playground renders a form for it above the message box — one field per parameter, generated from the schema. The Run button is disabled while a required field is empty; this is the same rule the server enforces (a run with a missing required value never starts), surfaced before the round trip instead of after it.

A tool call that needs a human decision stops the stream and renders as an approval card instead of a result — the entity name and message from a registered approval presenter when there is one, the raw call arguments otherwise. Approving or rejecting resumes the run as a new turn.

Runs

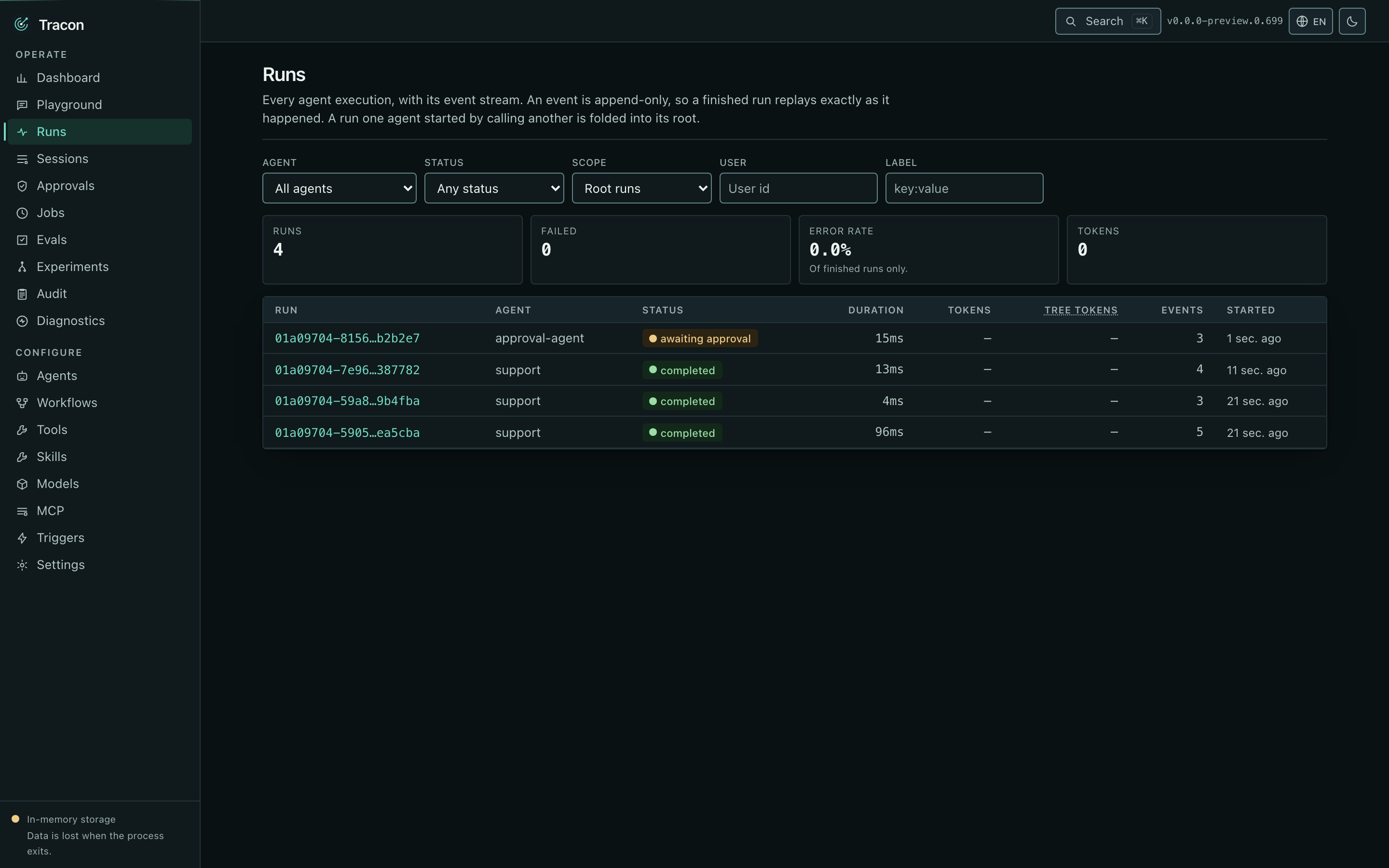

Every execution, filterable by agent, status, and kind — and, once your application binds IRunAttributionContext, by user and by label (key:value, or a bare key to match any value of it). Only root runs are shown by default — otherwise a single question that fanned out to four agents would fill the list with rows nobody started.

A run’s detail header names the user it belongs to and shows its labels as badges.

Opening a run gives the summary and the full event stream in order: message deltas, tool calls with arguments and results, errors with their class. The summary names the provider that actually answered, next to the model, and — when pricing is configured — the unit price applied for input, output, and any cached input; that price is a snapshot of what was in effect when the run ended, unaffected by a later catalog or configuration change. When a reasoning model’s thinking is recorded, it renders as its own collapsible block, separate from the answer. A run that called other agents shows the whole tree, and each agent’s tokens and duration are attributed separately. A sub-agent call that passed its wait limit shows a distinct timeline entry naming which layer cut it — see Agents calling agents. A tool that writes its own custom event — see Writing your own event — renders as a generic card named after that event’s own type, with no console change required to show up.

Two runs can be compared side by side, and any run can be scored. The thumbs on the run screen write one named score — overall — as the person looking at it. Every other score on that run, whether a second name someone wrote through the API or one an automatic judge produced, is listed beside them read-only, with its name and its value.

A run that continues one interrupted by a process crash names the run it continues, right next to the session and parent-run links, as a clickable id that opens the source run.

Sessions

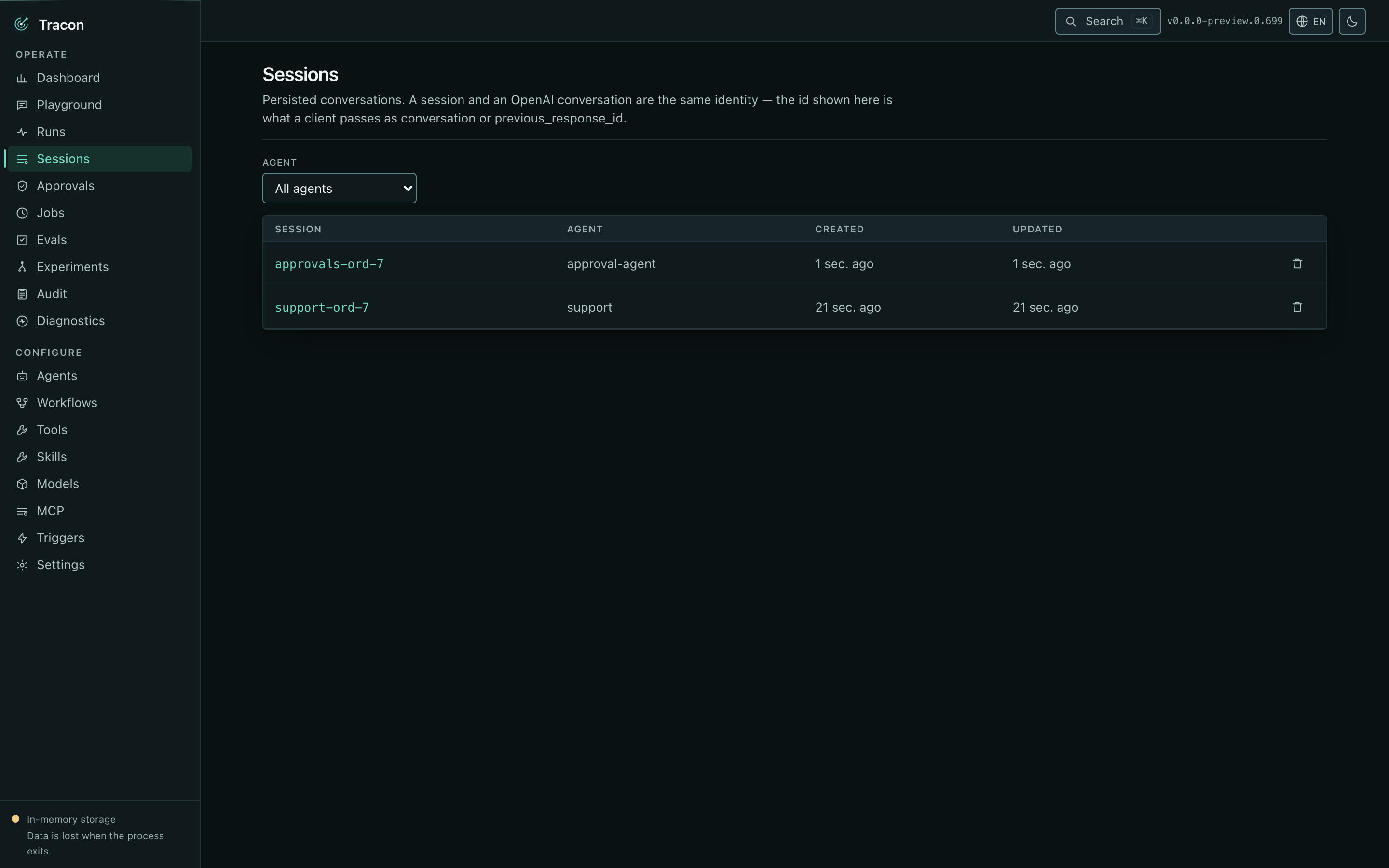

A session is a durable conversation. The list shows every session the active store knows about, with its agent, message count, and last activity; opening one reads the conversation back turn by turn, exactly as the model saw it.

Two things are only visible here. A session can be branched from any addressable item, which forks the conversation without touching the original — the fork opens as a new session with its own id. And attachments referenced by a message are listed with their type and size, so you can see what actually reached the provider.

In-memory storage keeps sessions only for the life of the process. Reading a conversation back, and branching it, need a SQL store.

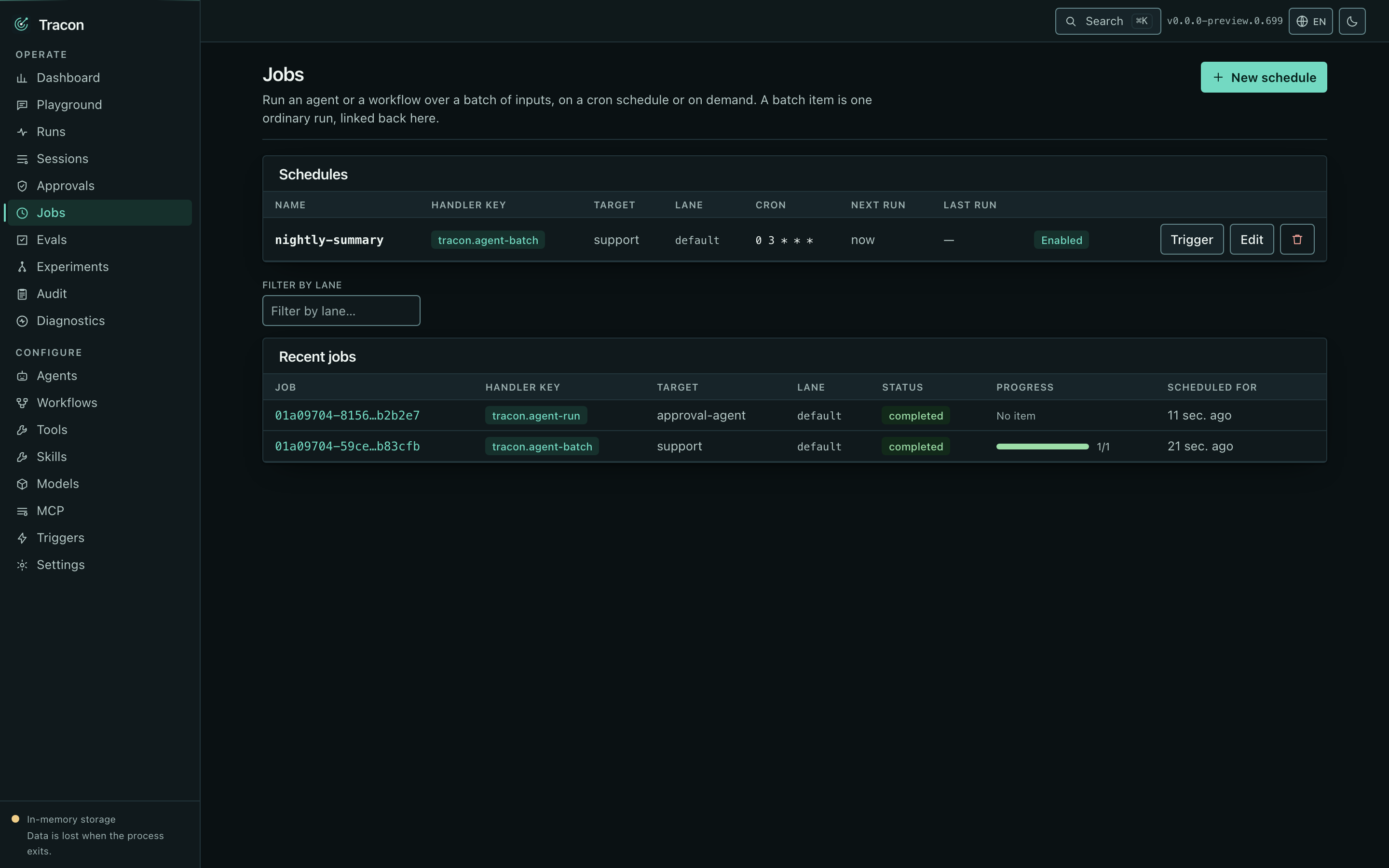

Jobs

Everything Tracon runs in the background, in one queue: queued agent runs, scheduled runs, workflow executions, evaluation runs, online-evaluation scoring, and webhook deliveries. Each row carries its handler key, status, attempt count, and — for a failure — the classified error. The handler key is what decides which code runs the job, so it is also the most useful thing to filter the queue by.

Schedules live on the same screen. A schedule is a cron expression, a handler key, and the payload to run; leaving the expression empty makes it manual-only, which is the honest way to park one. Triggering a schedule by hand queues exactly the job the timer would have. The handler dropdown lists only the keys this server accepts over HTTP, so a schedule the form lets you save is one the server will take.

Every job and schedule shows its lane — a plain text tag that keeps unrelated kinds of work from blocking each other in the same queue. Filter the job list by lane to find work a worker is not currently scoped to pick up.

The queue drains in any process whose worker is running. That is the default: TraconSchedulingOptions.Enabled and RunWorker are both true, so calling UseScheduling() is about configuring the worker, not switching it on. A queue that never moves is almost always a deployment where every process sets RunWorker to false — see Jobs, schedules, and queues.

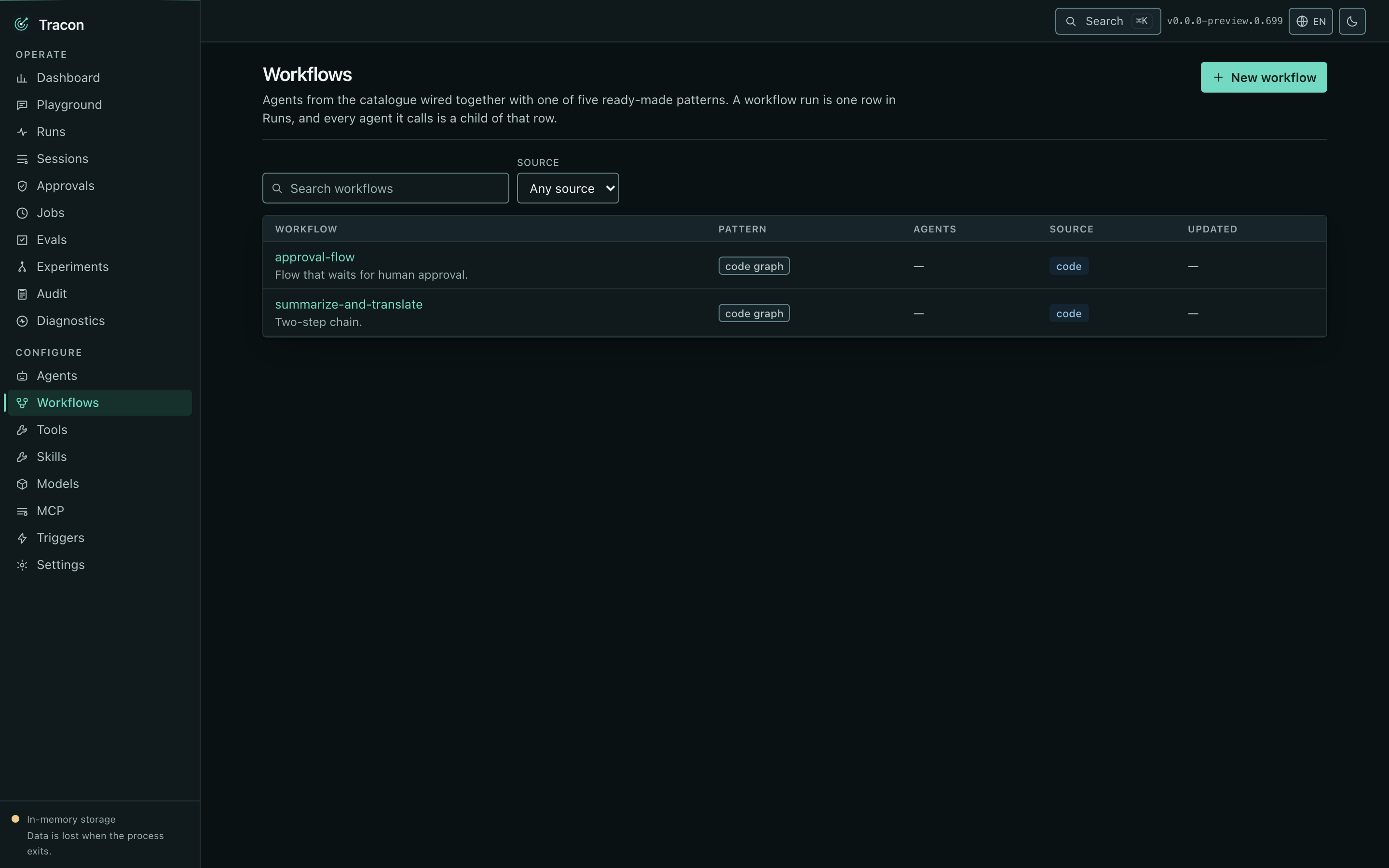

Workflows

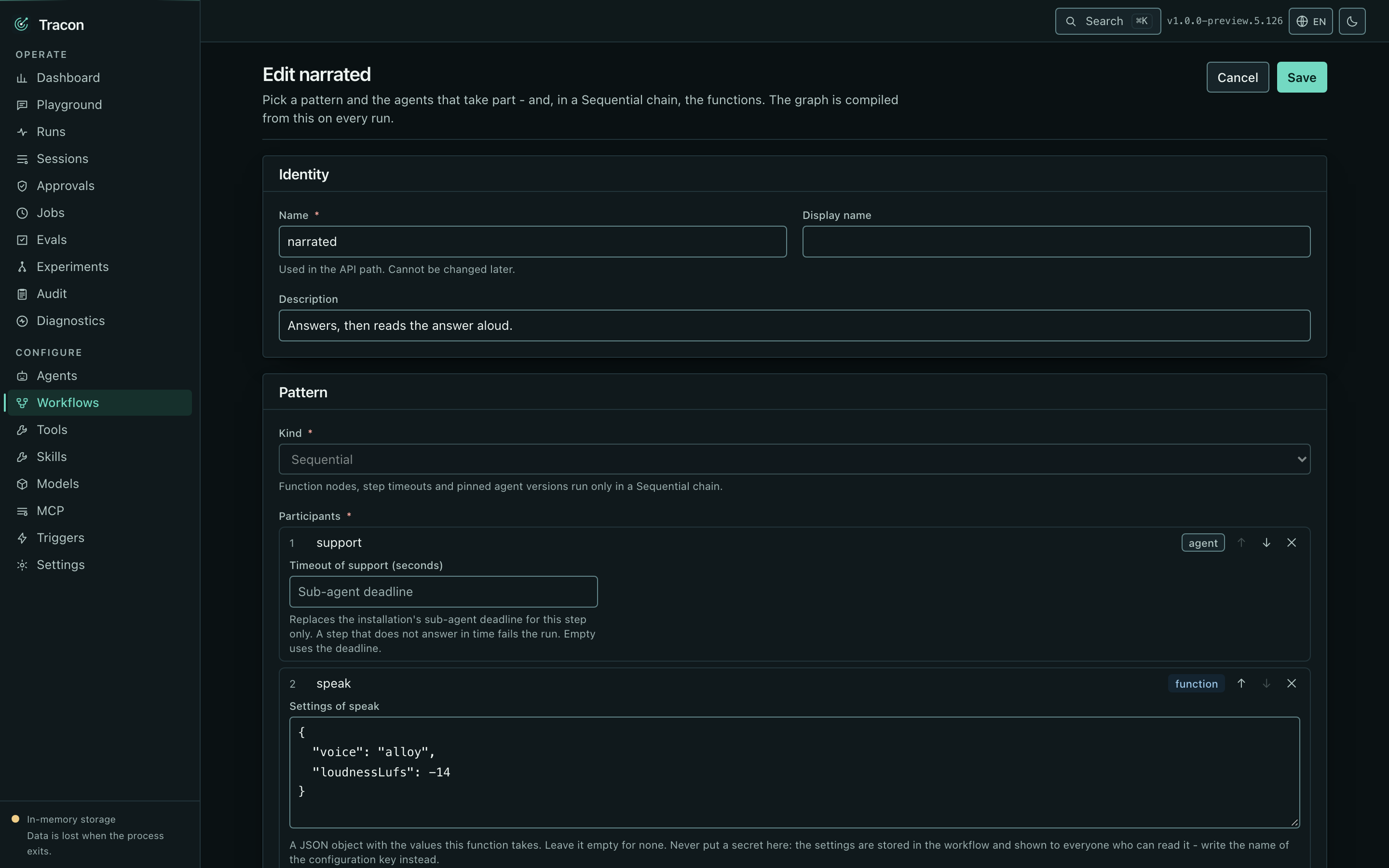

Workflows defined in code and in the database. Opening one draws the compiled graph, and the node ids are the same executor ids that appear in run events — which is how nodes light up live while a workflow runs.

A workflow waiting on human input shows the pending request as a card; answering it resumes execution from the checkpoint as a new run.

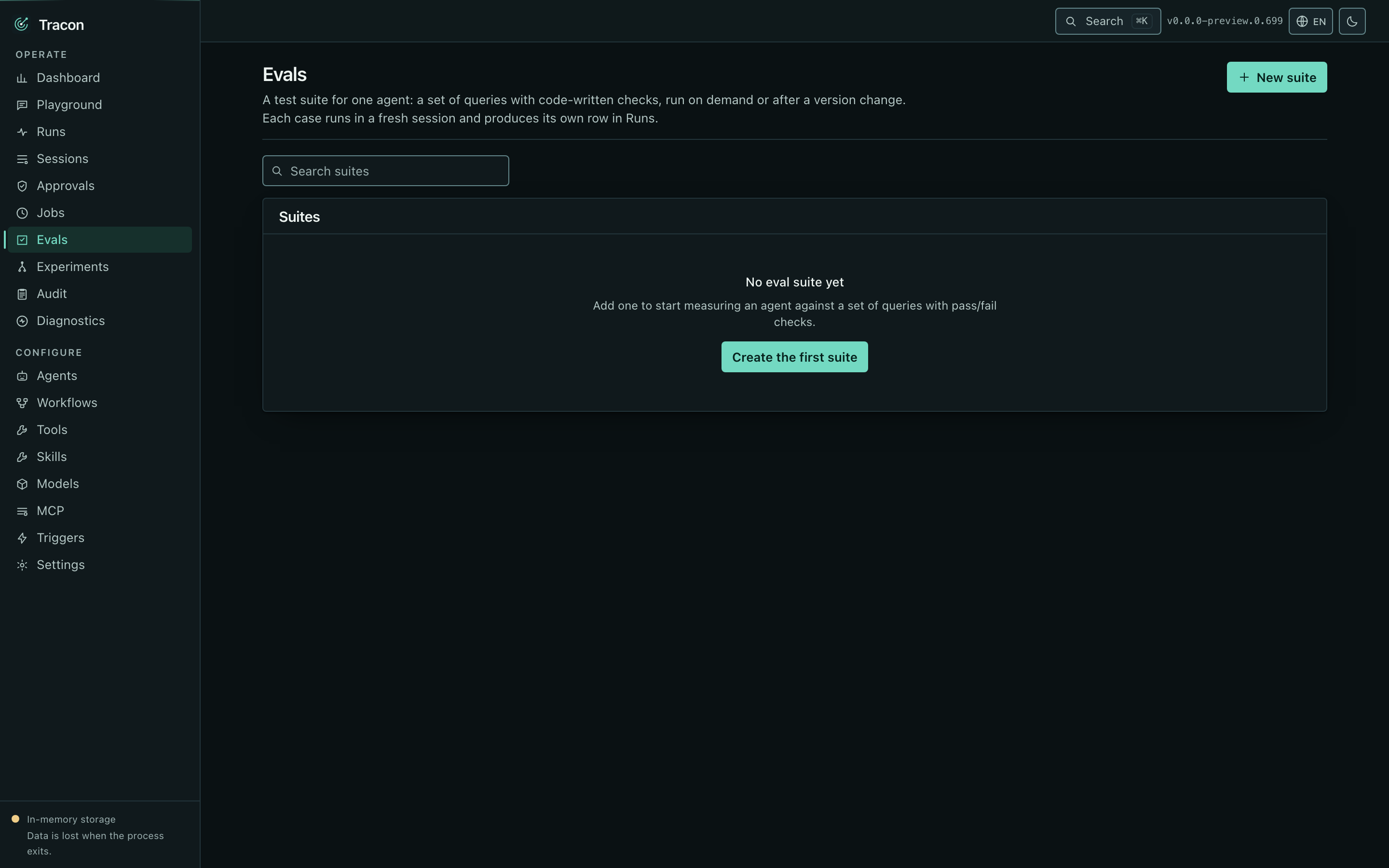

Evals and experiments

Suites, their cases, and their past runs. A case can be promoted straight from a real run, which is the fastest path from “this conversation went wrong” to “this is a regression test”.

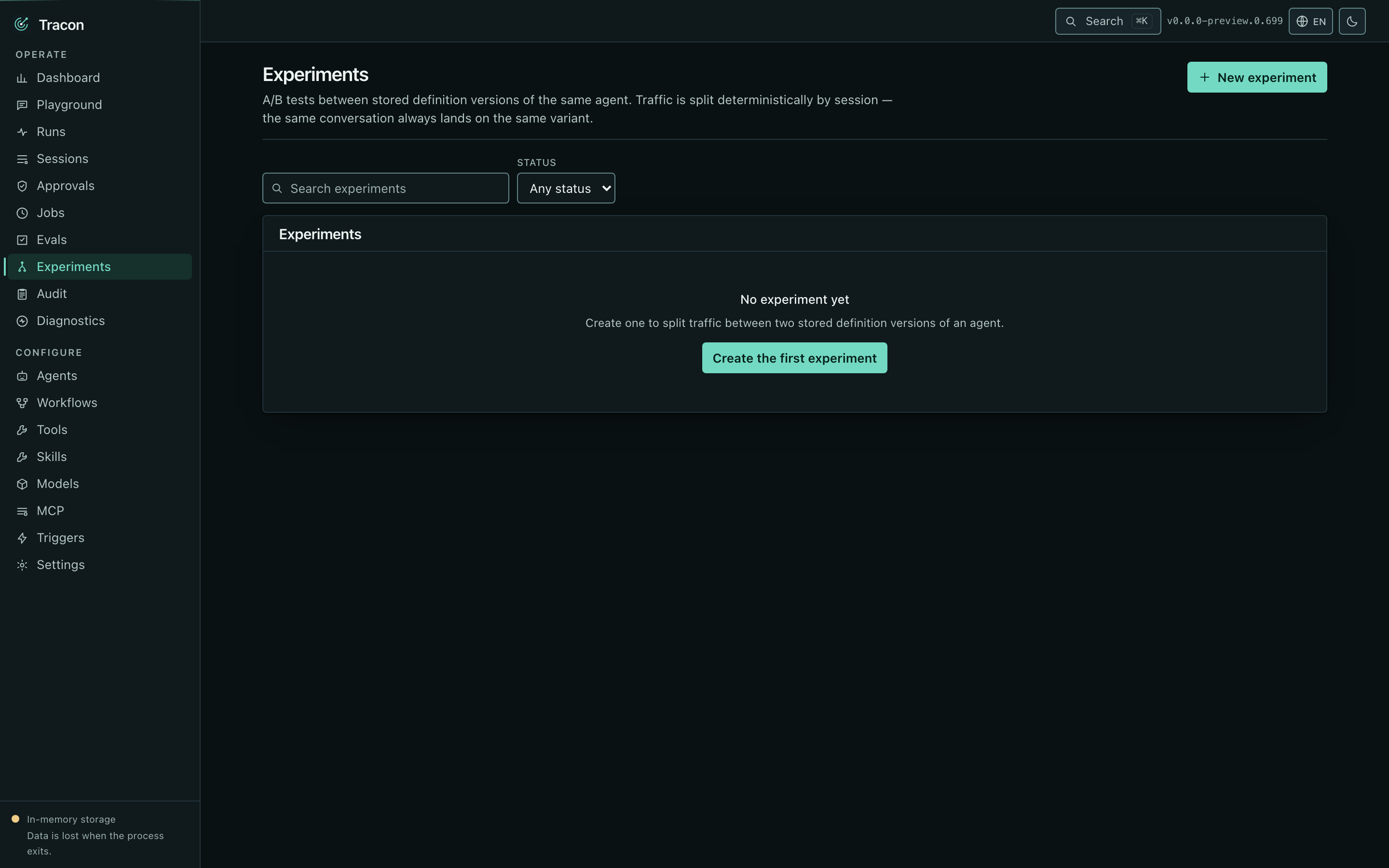

An experiment splits live traffic between two versions of the same agent. The results show per-arm counts, error rates, tokens, and durations — and make no claim about a winner. The numbers are yours to judge.

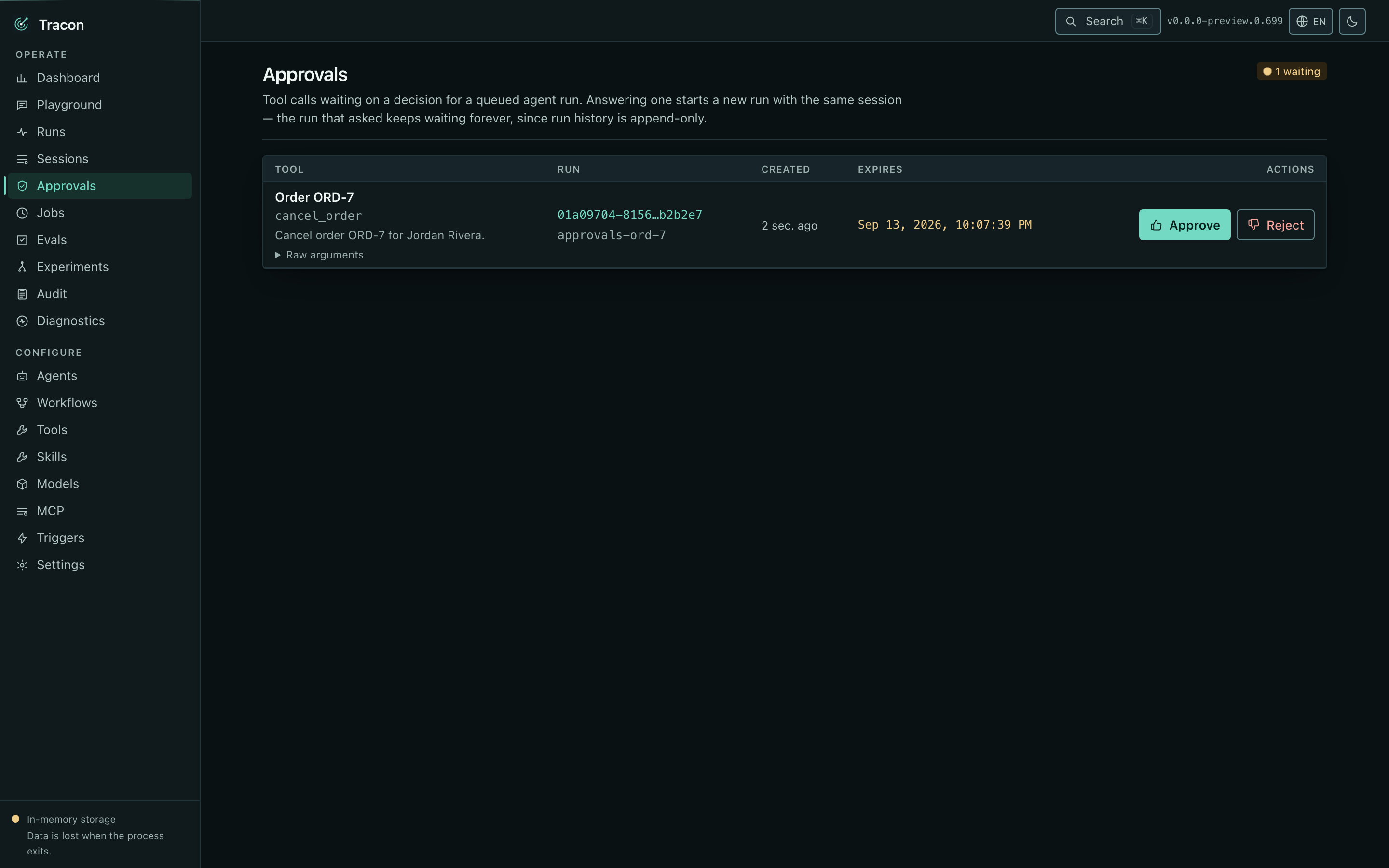

Approvals

Tool calls waiting on a human, with the arguments as they were recorded and an expiry. When a registered approval presenter resolves an entity name and message for the call, the table shows that instead of the raw arguments; a call the presenter could not resolve still shows the arguments, since the presenter fails open. Approving or rejecting both resume the run — the model has to see a result or a refusal and carry on.

Standing “don’t ask again” rules live under Governance, where they can be reviewed, revoked, or written by hand with an argument condition (for example amount <= 100) instead of an exact-argument fingerprint. The condition editor is a closed set of comparisons, not a free-text expression box.

Catalog

Tools

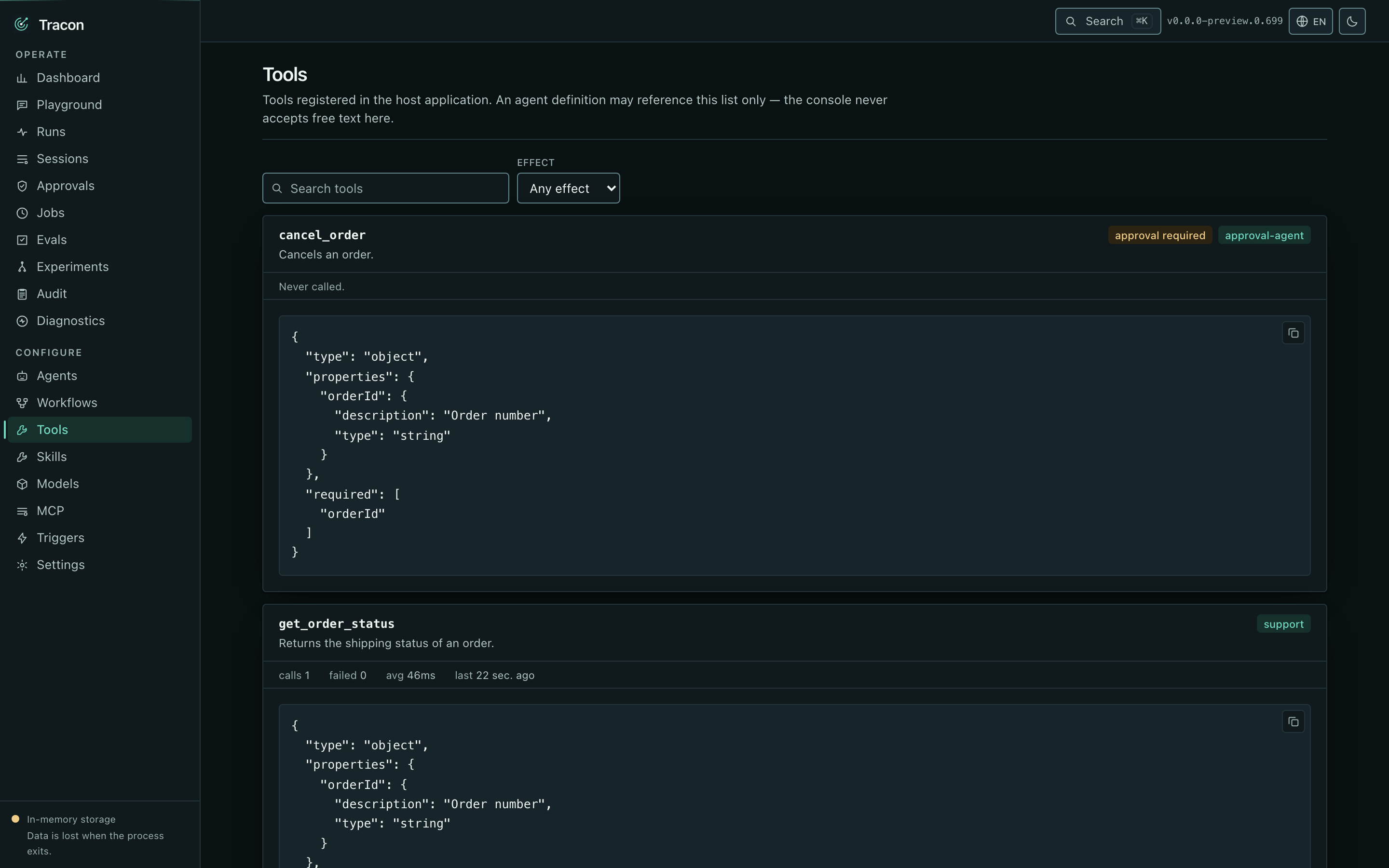

Tools with their generated JSON schemas — read-only, and permanently so. This screen is where the code-only rule is most visible: you can see every tool an agent may use, and there is no way to add one from here. A tool registered with AddClientTool(...) carries a “client-side” badge: its declaration is still code-only, but its body runs on the caller instead of the server. See Client-side tools and the embeddable widget. A destructive tool carries a red badge, one that sends data outside the process an orange one, and a tool with a declared permission or a non-default timeout shows both next to it — see Tools: authorization and timeout.

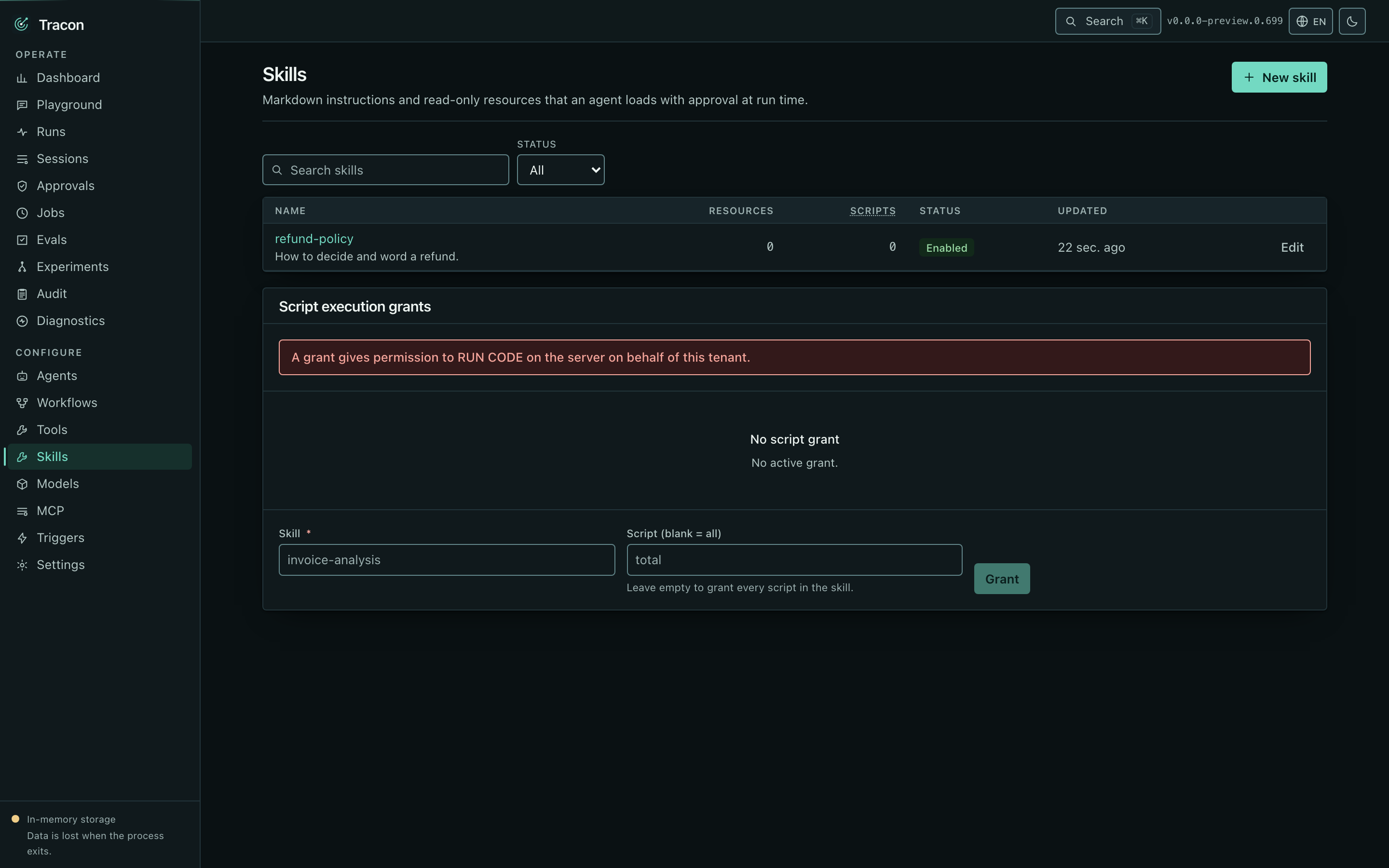

Skills

Skills sit beside the tools. A skill is markdown instructions plus read-only resources that an agent loads at run time, with approval. The editor shows the frontmatter, the compatibility and license fields, the allowed-tool list, and the resources; the markdown is stored as source text and the console does not render it.

This is the second place the code-only boundary is visible: a skill may carry a script, but the console can only reference a script the application already registered and granted. It cannot write one.

Models

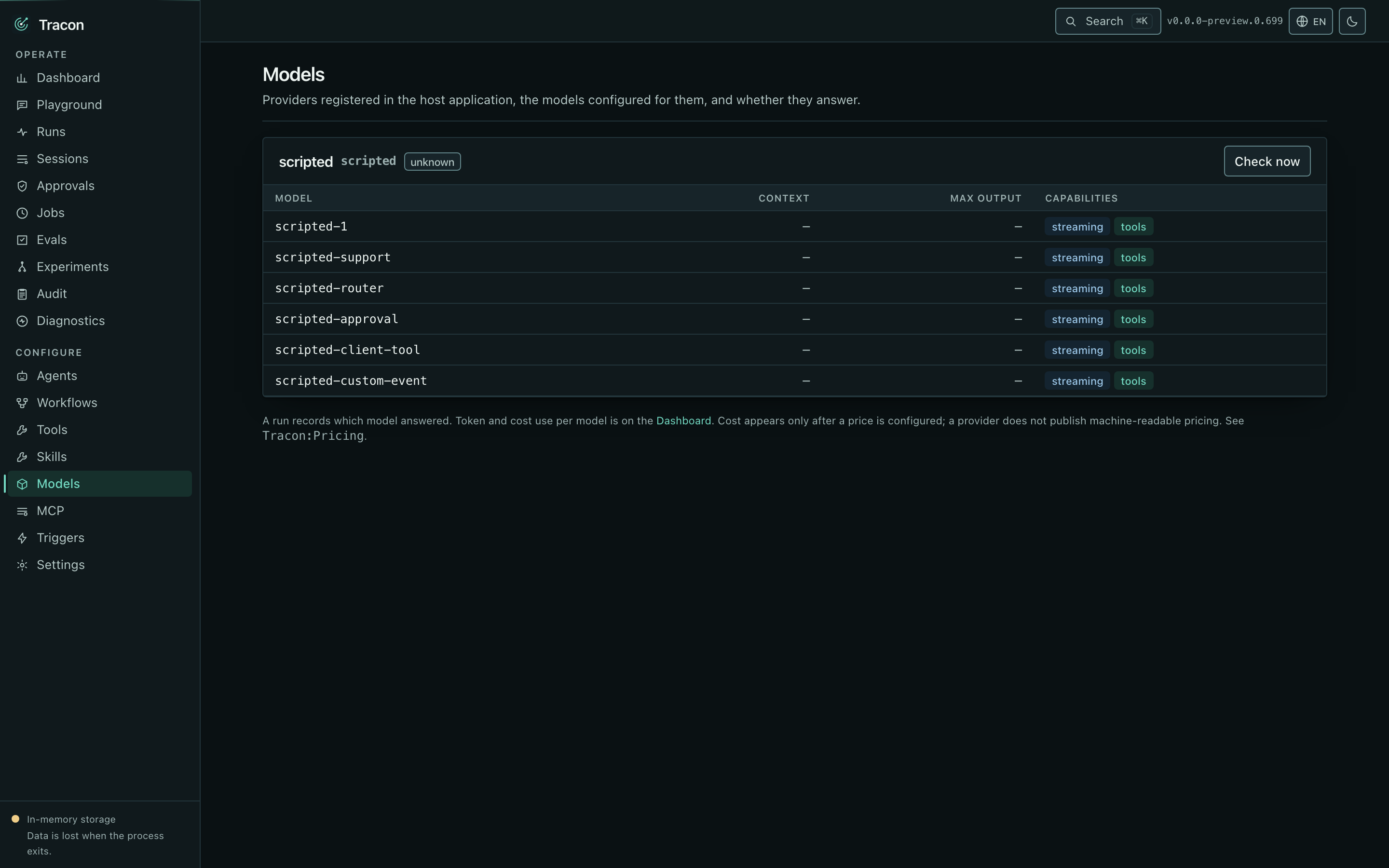

Providers and their configured models, with a health status served from cache. A provider that implements no health check reports Unknown, which is not an error.

MCP

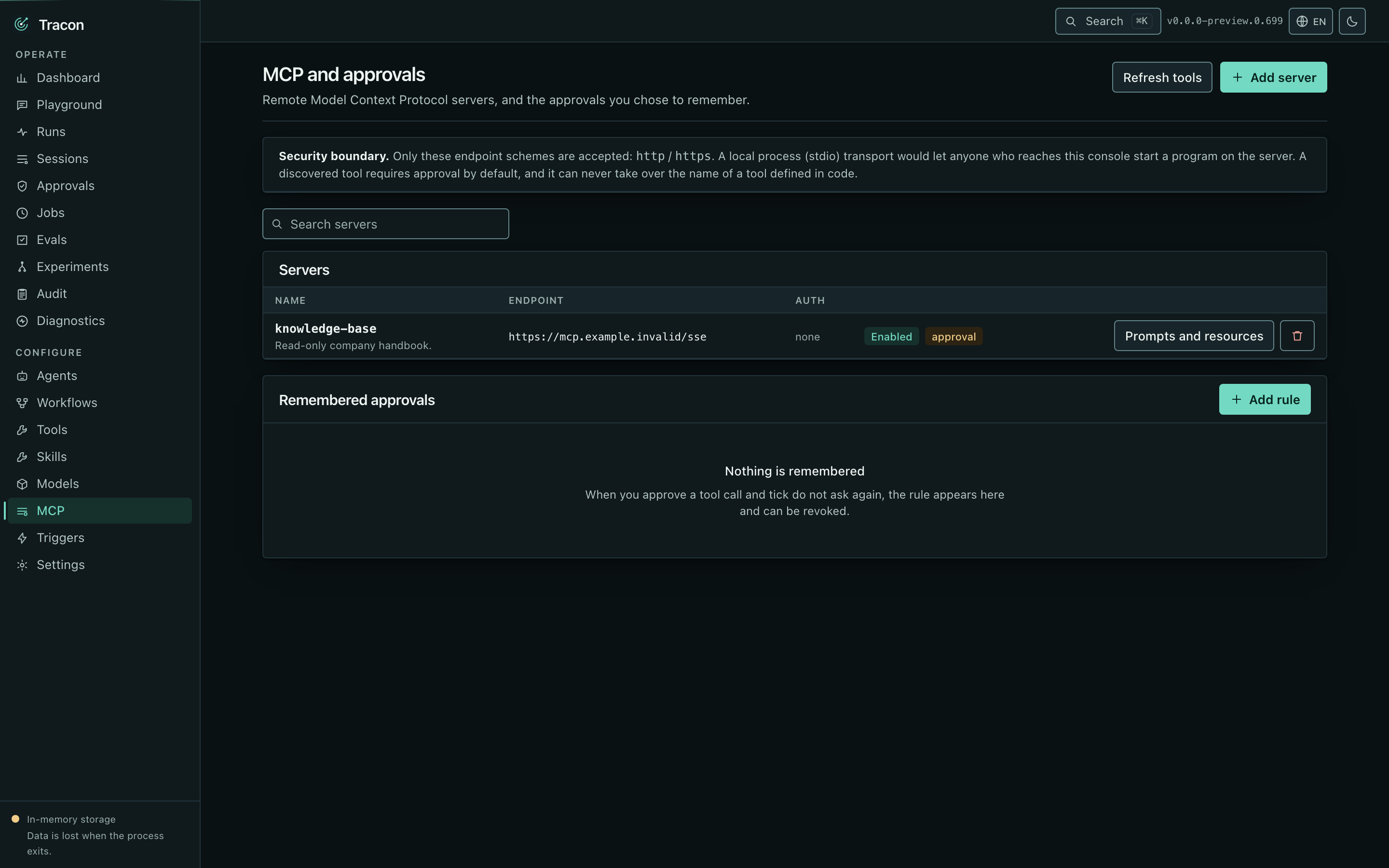

Remote MCP servers and the tools discovered from each. A server is a definition — an endpoint, a transport, and the name of the configuration key its authorization value is read from — so the console never holds a credential. Discovered tools carry the same approval badges as code-defined ones, and refreshing a server re-reads its catalog without a restart.

Governance

Audit

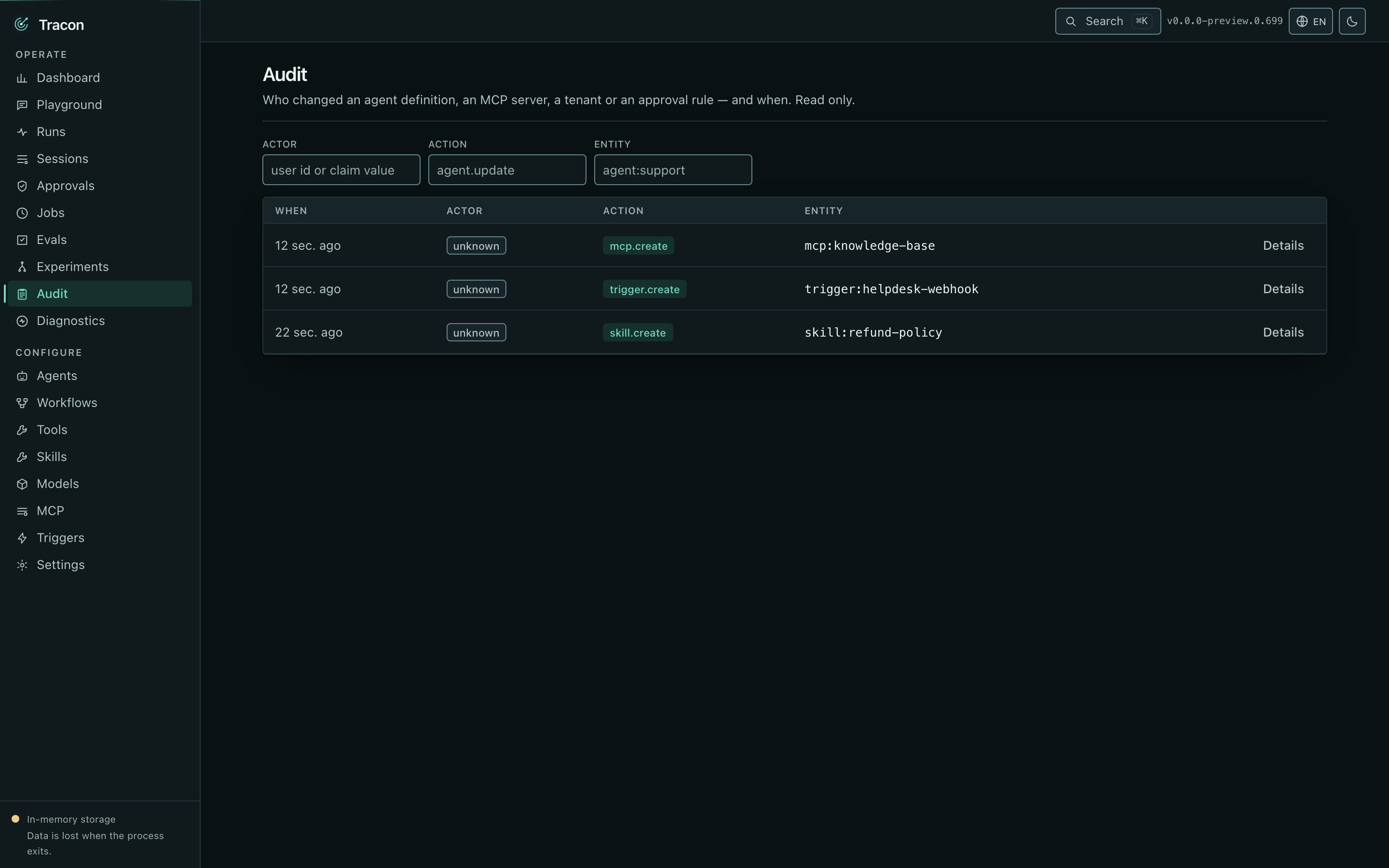

Who changed what, when, and from what to what — filterable by actor, action, entity, and date range. Secret-looking fields are masked before anything is stored.

Quotas, retention policies, API keys, tenants, tenant provider bindings and egress policy (BYOK), and skill script grants have their own screens in the same area.

Triggers

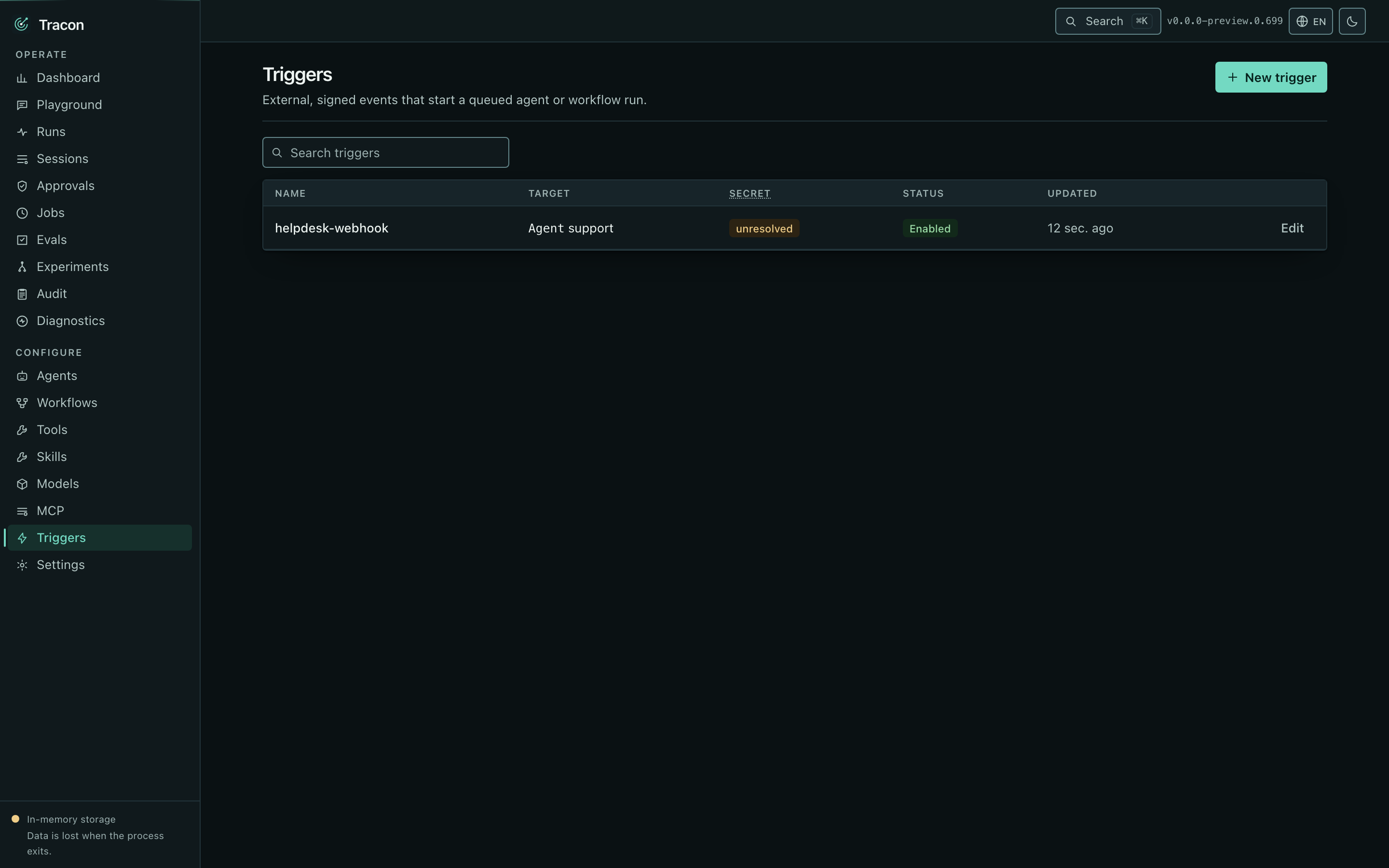

Inbound triggers let an external system start a queued run with one signed request and no API key. A trigger’s editor shows the exact URL to configure in that system, the target agent or workflow, and the name of the configuration key holding its signing secret — see Inbound triggers.

Diagnostics

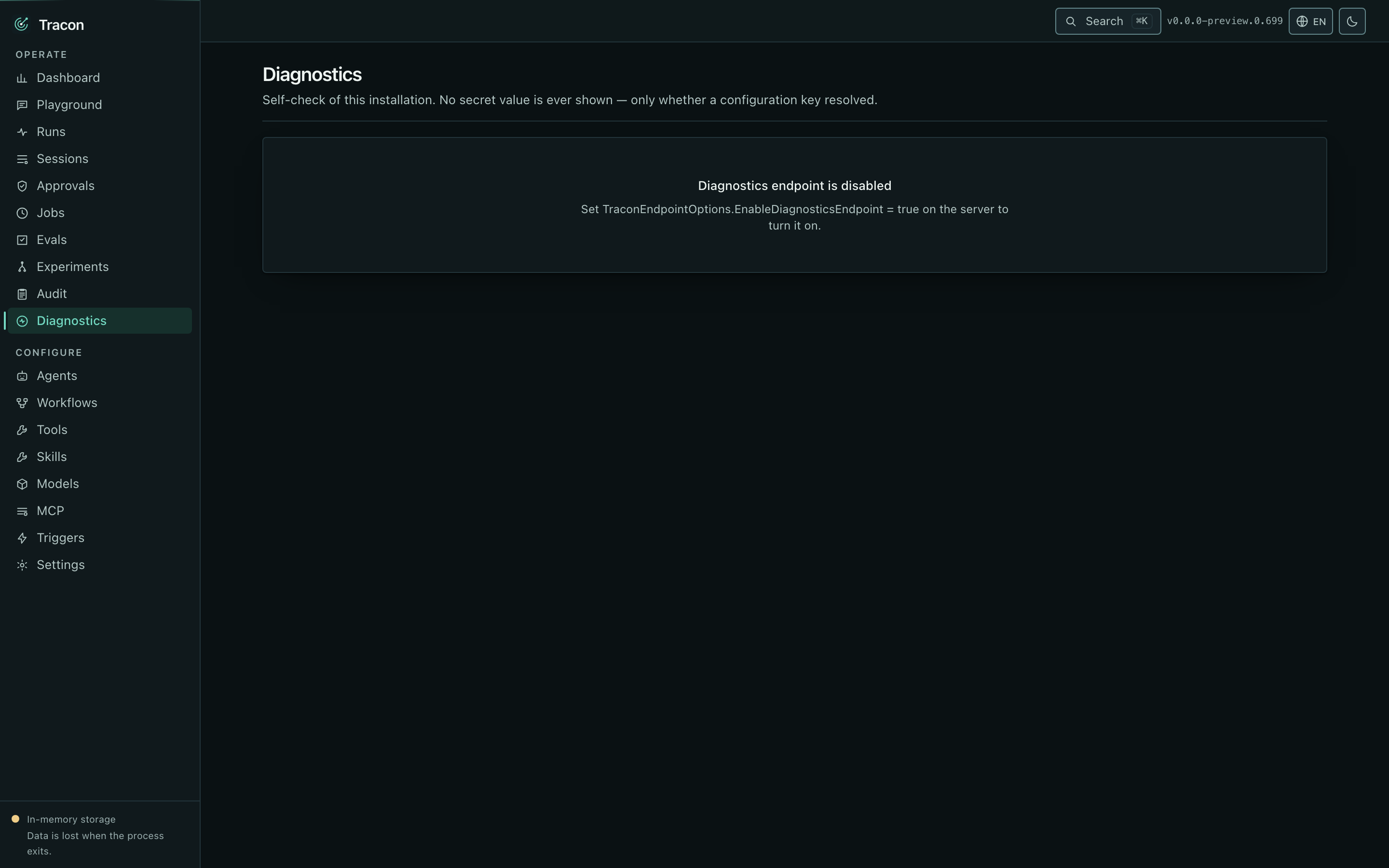

Diagnostics answers “is this deployment actually wired up the way I think”: which stores are active, whether migrations are up to date, and what is pending.

It is opt-in because setup details are sensitive. Enable the Admin endpoint before the screen can load it:

app.MapTracon("/tracon", options =>
{
    options.EnableDiagnosticsEndpoint = true;
});

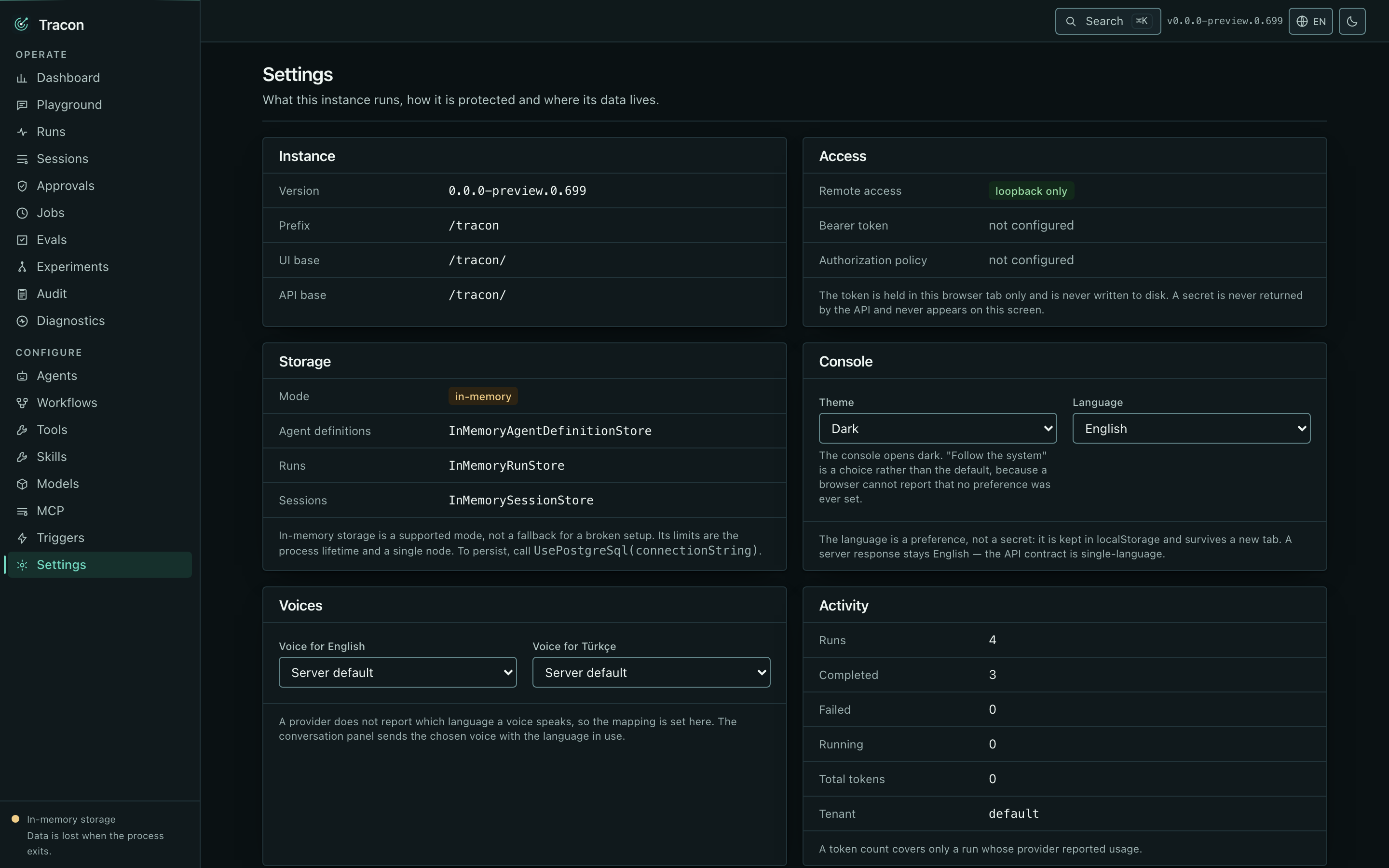

Settings

Version, prefix, authentication method, active stores, theme, and language.

Embeddable chat widget

Tracon.UI also builds a second, much smaller bundle: a floating chat widget meant for a different page — your own product’s site, not the console. It ships from a separate Vite entry, with its own budget gate (30 KB gzip; current size: 2.7 KB), so console code cannot leak into it. UseUI() serves both; no separate registration is needed.

<script src="https://your-tracon-host/tracon/embed/embed.js"
  data-server="https://your-tracon-host"
  data-agent="support"
  data-api-key="sk_..."></script>

The widget calls the run endpoint directly from the embedding page’s origin, so AllowedOrigins must list that origin — empty by default, so a page you have not explicitly allowed is blocked by the browser. See Client-side tools and the embeddable widget for the full walkthrough, including how the widget runs a client-side tool.

Things worth knowing

• The console works under any prefix and learns it at run time
• Dark and light themes. A fresh console opens dark; Settings also offers “follow system”, which then tracks the operating system
• English and Turkish; the default follows the browser. Server messages are shown as they are and never translated — the same failure has to read the same way in a log, a test, and a support ticket
• A command palette on ⌘K / Ctrl+K reaches every screen, every recent run and session, and the few actions that are not a navigation
• The first Tab on any screen is “Skip to content”. Every layer closes with Esc and hands focus back to whatever opened it
• Buttons the caller has no role for are hidden, based on what /api/meta reports. A screen your role cannot open says so — it does not show you an empty one
• Every list carries a labelled filter strip, and its “clear” appears only while something is actually narrowed. Empty lists say how to create the first entry, except where an empty list is the state you want: no approval waiting, no standing quota, no script grant, no auto-rollback rule
• Every failed request shows the server’s own words and offers a retry in place, so a 500 is not a dead end that only a page reload escapes
• Loading is a skeleton sized to the rows that are coming, so arriving data does not move the page under the pointer
• Descriptions ride in tooltips that appear on hover and on keyboard focus and dismiss with Esc. The title attribute is used only for the full value behind something abbreviated — a relative time, a shortened identifier
• The token is kept in sessionStorage and is gone when the tab closes; theme and language live in localStorage
• The JavaScript budget is 250 KB gzip and is enforced by the build. Current size: 190.3 KB
• Four run-time JavaScript dependencies, and the build fails on a fifth. Dialogs, menus, tooltips and the command palette are written against the platform rather than pulled from a component library

Editor boundaries

The editor supports structured output, harness settings, and compaction. Three newer definition areas are code/HTTP-only today: provider-specific ProviderSettings, static McpResourceUris, and Knowledge vector bindings. Do not round-trip a definition that uses those fields through the current editor; edit it through code or the management HTTP API so the fields remain explicit.
